ODOS丨Mapping&Bumping

Planar-Mapping

vec2 texuv = p.xy*.5+.5;
diffusecol = texture(iChannel0,texuv).rgb;

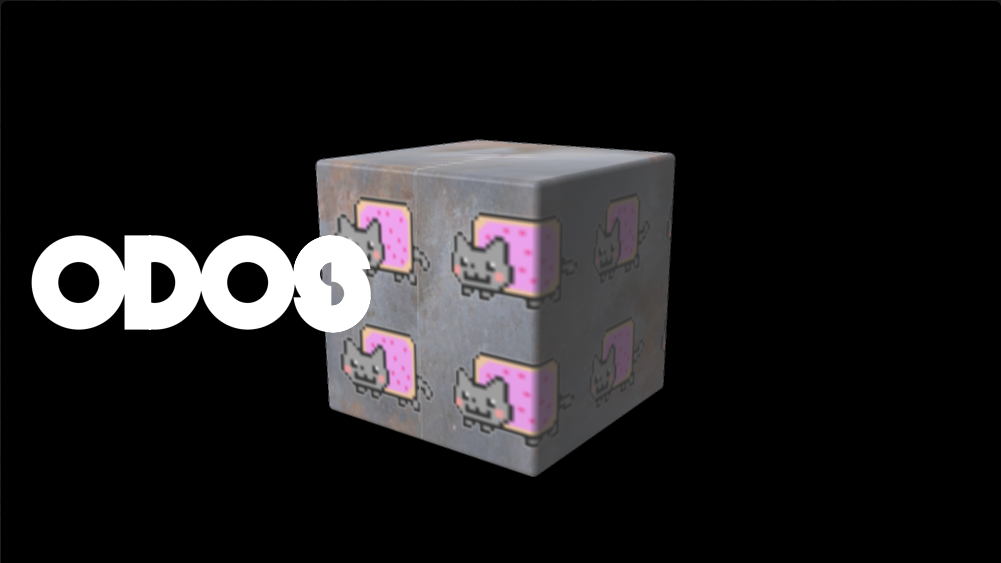

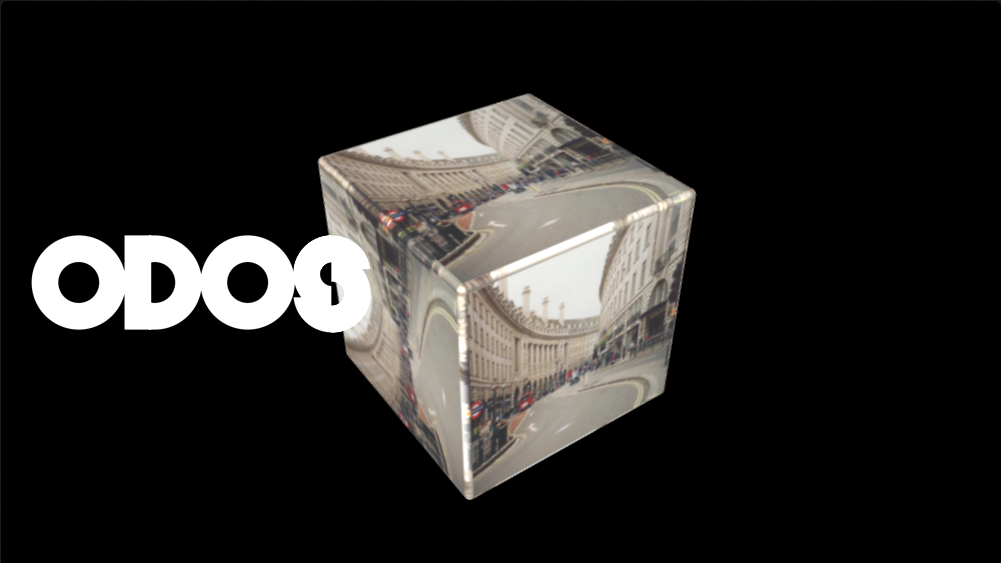

Tri-PlanarMapping

vec3 texn = pow(abs(n),vec3(8));
texn /= texn.x+texn.y+texn.z;
vec3 colxz = texture(iChannel0,p.xz*.5+.5).rgb;
vec3 colyz = texture(iChannel0,p.yz*.5+.5).rgb;
vec3 colxy = texture(iChannel0,p.xy*.5+.5).rgb;
diffusecol = colxz*texn.y+colyz*texn.x+colxy*texn.z;

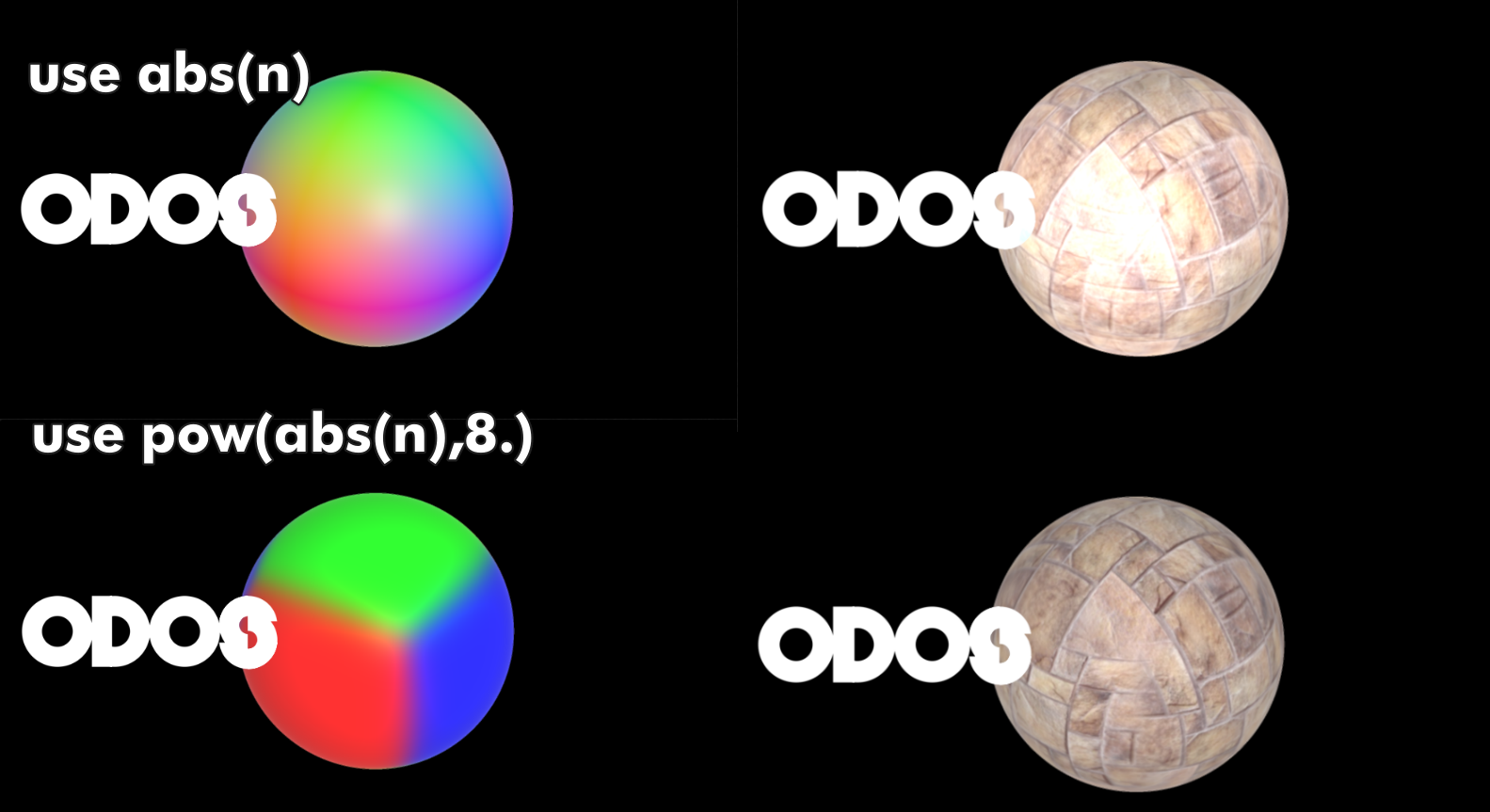

pow()用来加强三个面直接的分化程度，乘完别忘记保证xyz分量的加和为1，这里abs(n)过亮了就是因为少了这一步~

PolarMapping

vec2 texuv = vec2(atan(p.x,p.z)/2./PI,p.y);
vec4 cat = texture(iChannel1,texuv);
diffusecol = mix(diffusecol,vec3(cat.rgb),cat.w);

Bumping

利用PolarMapping可以在SDF函数里采样一个高度图加在d上，就可以实现——

by ERIN.Z
